Indicative Furnace

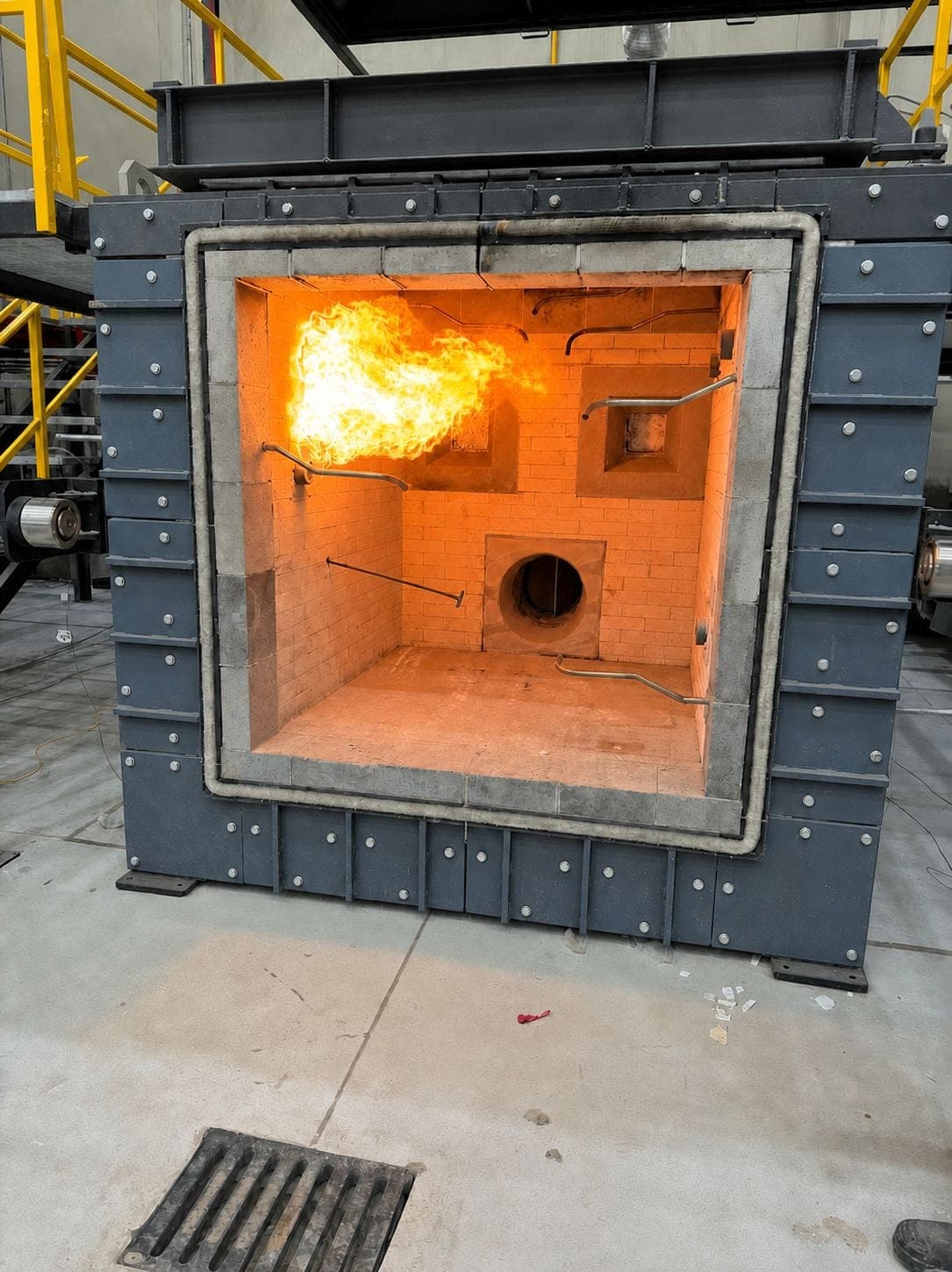

Indicative Fire Resistance Test Furnace
Compact furnace solution for development, research and preliminary fire resistance testing.
Development & Preliminary Testing
Compact, Flexible Fire Testing
- Product development
- Preliminary fire testing
- Joint systems
- Penetration seals
- Small construction assemblies
- Research programmes
Typical Configuration
- Internal dimensions approx. 1.5 × 1.5 × 1.5 m
- Vertical or horizontal specimen configurations
- Fully automatic control with manual override, the same control philosophy as the full-scale furnaces
- Temperature and pressure measurement; controlled extraction
- Data acquisition and test documentation
Why Indicative
De-risk Certification Before Booking the Accredited Laboratory
Before committing to a full-scale official test at an accredited laboratory, manufacturers can validate expected performance with indicative tests, at a fraction of the cost and lead time.
- Development furnace for iterating on product design before certification runs
- Lower risk: catch failures early, before they cost a full-scale test slot
- Mostly used for research and development of vertical and horizontal test specimens
Professional Measurement Principles
The indicative furnace can use the same fundamental measurement approach as larger installations, adapted to its size and intended test programme.
Temperature
Furnace and specimen measurement channels.
Pressure
Controlled pressure measurement and extraction.
Documentation
Test data can be organized with DataBrain for observations, timeline and report preparation.
Performance
- Fully automatic control with manual override
- Temperature and pressure measurement; controlled extraction
- Curve library shared with the full-scale furnaces; curves and maximum temperature specified per project
Refractory Construction
- High-alumina refractory materials selected according to furnace temperature and duty
- Insulating refractory layers designed to reduce heat losses and external surface temperatures
- Low-thermal-mass construction for controlled thermal response
- Modular refractory design to facilitate inspection, maintenance and replacement
- Engineered expansion joints to accommodate thermal movement and reduce deformation
Steel Structure
- Heavy-duty welded steel structure engineered for repeated thermal cycling
- Structural design adapted to furnace dimensions, specimen loads and laboratory configuration
- Furnace casing and reinforcement designed for dimensional stability during testing
- Accessible construction for inspection and maintenance
- Surface protection and finishing according to project and environmental requirements
Selected Indicative Furnace Projects
- Country
- United Arab Emirates
- Laboratory
- Safety laboratory
- Scope
- Complete laboratoryComplete laboratory: concept, design, commissioning and technician training
- Equipment
- Indicative furnaces within a complete laboratory with vertical and horizontal furnaces and load frames
Other Configurations
Request Information
Discuss Your Project
Contact STARKOS to define your test programme, standards, specimen dimensions, instrumentation and laboratory requirements.
